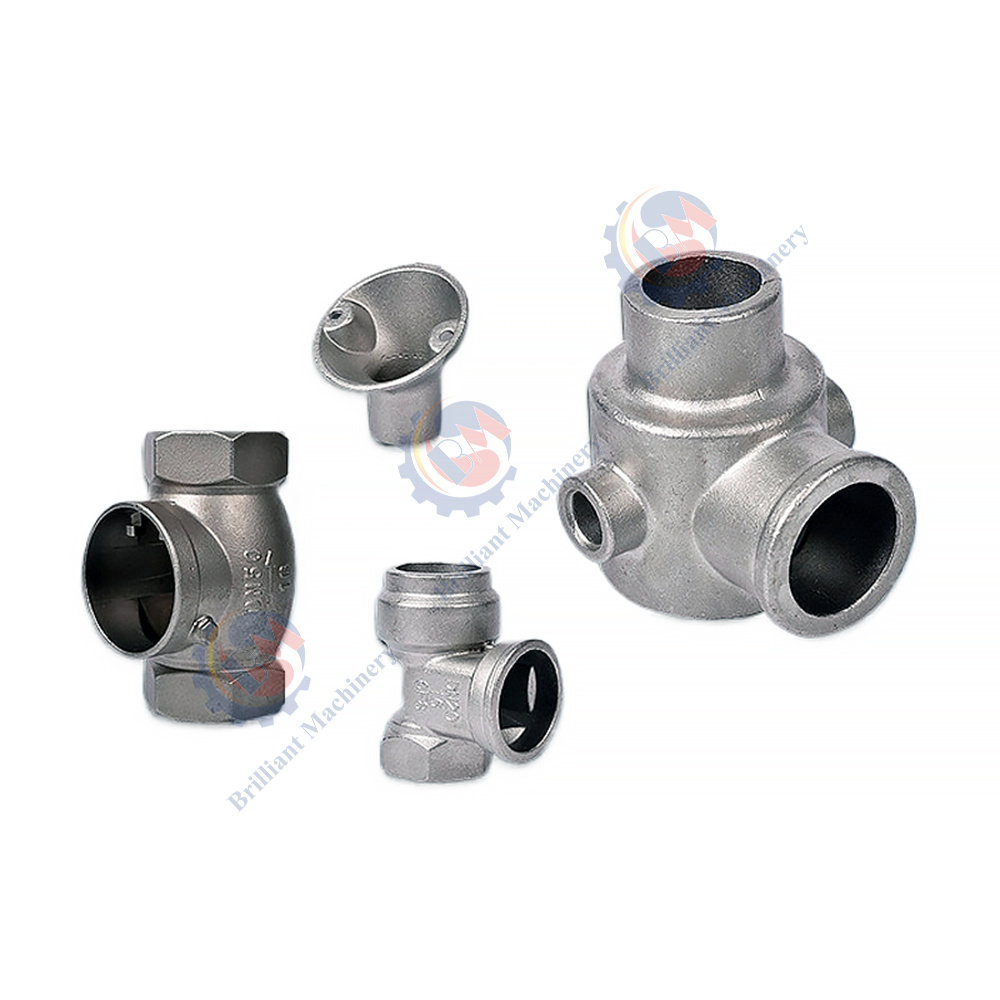

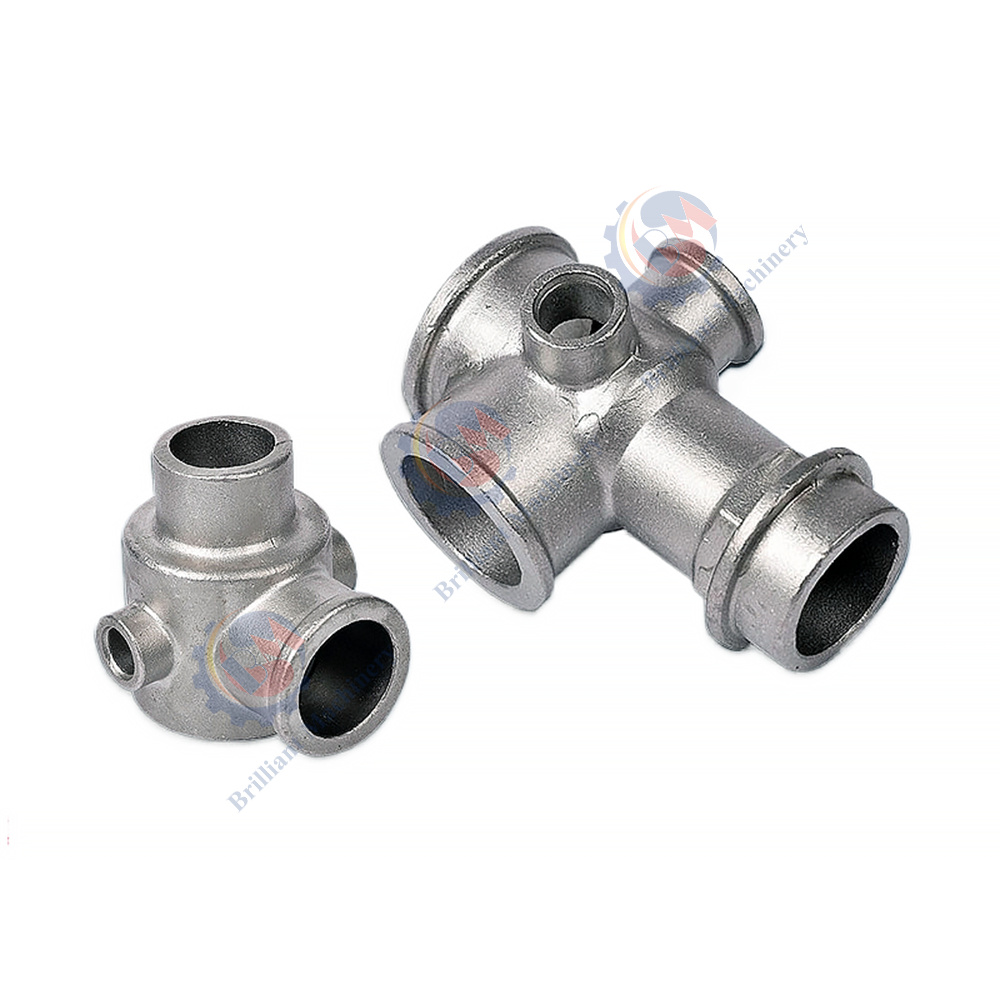

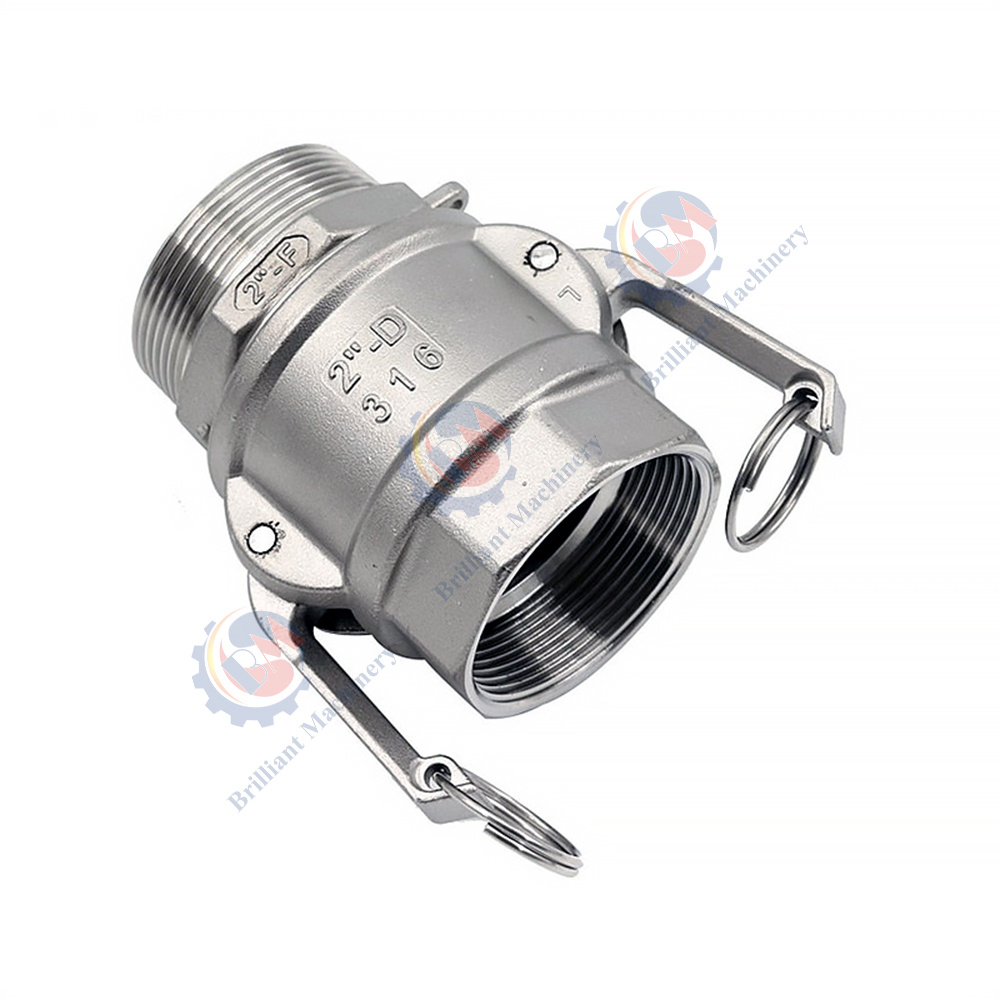

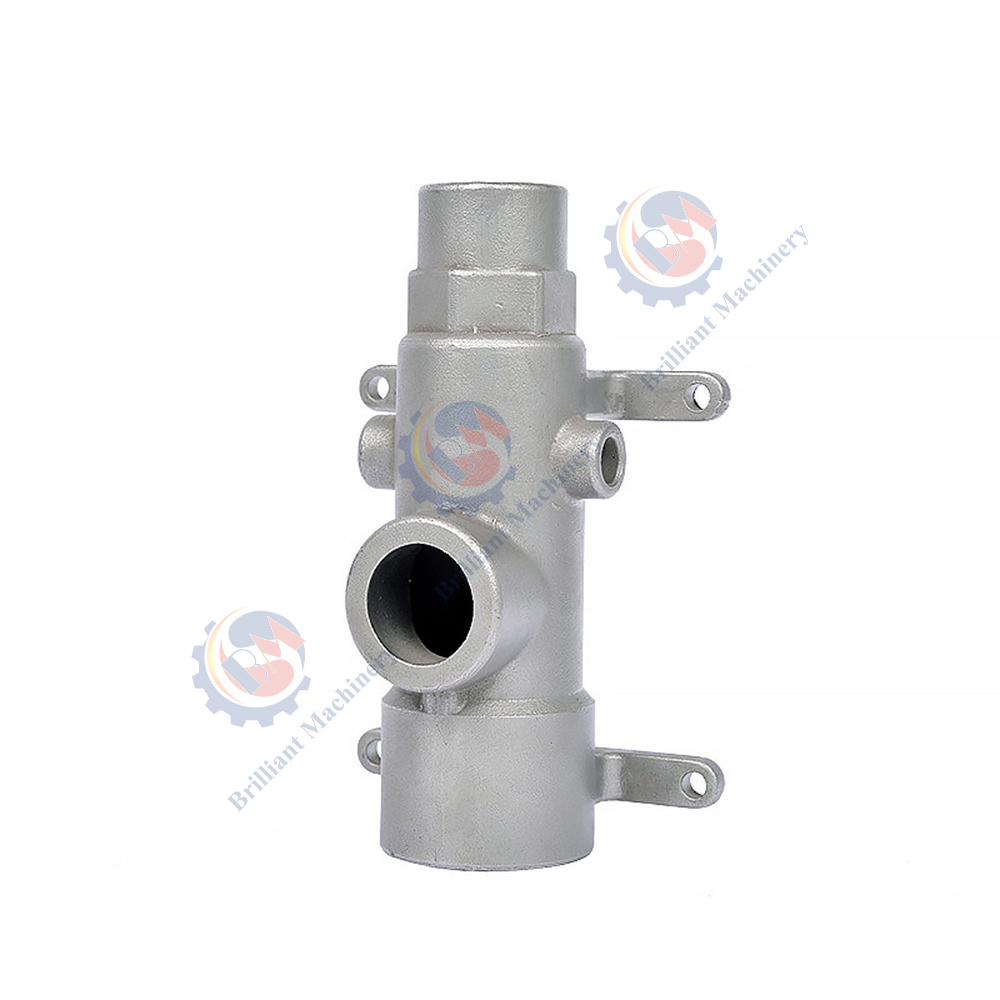

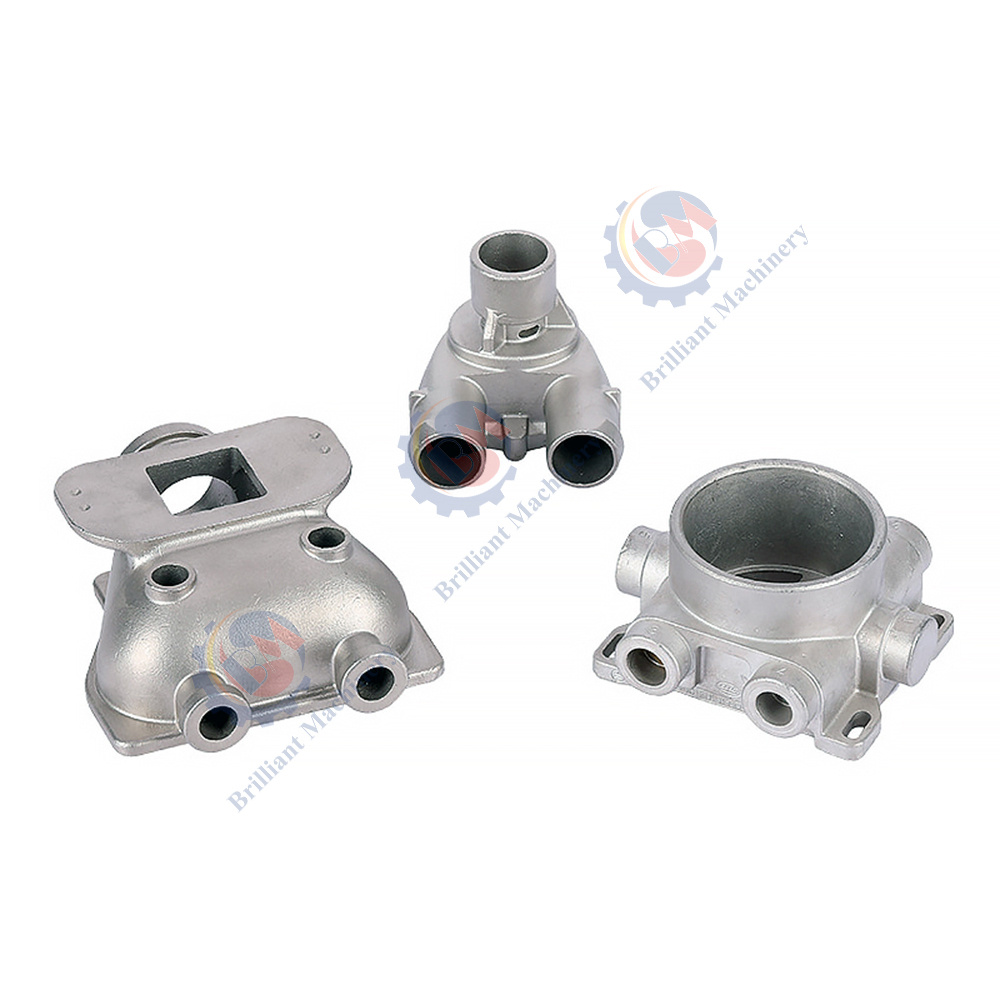

Water-glass Investment Castings for Valves
Material
The primary investment materials for investment casting of valve manufacturing are:
Carbon Steel: Offers great mechanical strength, which is well-suited for standard-purpose valve for moderate pressure.
Stainless Steel: Very resistant to corrosion, ideal for valve usage in chemical exposure environments or dampness.
Alloy Steel: Chosen for greater durability and abrasiveness, particularly for valve use in hard-duty operation.
Bronze and Brass: The materials have been selected for durability and anti-corrosiveness, which makes it perfect for industrial and sea valve applications.
Specifications
Water-glass investment casting of valve can be developed in different designs and size according to customer requirements:
Dimensions: Custom-designed for a perfect valve body, valve component, or valve flange size.
Tolerances: Castings have little tolerance, which gives an ideal fit and operation.
Wall Thickness: Can be made in standard and custom thicknesses for improved durability and lower weights.
Surface Finish: The process provides a fine surface finish, reducing subsequent machining and polishing.
Pressure Ratings: Can sustain a number of different pressure classes, typically between a low and a maximum system.
Production Processes
The production of water-glass investment casting includes these major steps:
Pattern Creation: The pattern of a valve component is first created, traditionally in a wax or a resin material.
Mold Building: The pattern is masked by a thin film of fine silica sol in making a mold of high strength. The continuously reapplied slurry is employed in mold building.
Drying and hardening of mold: This is being done so it can support the extreme temperature of melted metal.
Wax Removal: The pattern is melted away in subsequent wax melting, leaving a mold cavity.
Casting: Molten material is directed into mold space, taking its place in filling it, and making the valve component.
Cooling and finishing: The casting is removed once it cools, and more material is machined off or chopped off for actual size.
Quality Test & Inspection
To ensure maximum quality, each casting is inspected rigorously and tested.
Dimensional Inspection: For inspections of fulfillment of requirements as specified and tolerance.
Material Composition: Testing is being done for using the appropriate material or appropriate alloy and its satisfaction of requirements.
Visual Inspection: Cracks, inclusions, and porosities in a surface under study are examined.
Non-Destructive Testing (NDT): A process of determination of internal flaws utilizing technologies such as x-ray testing, among others, in a non-destructive process.
Pressure Testing: Valves usually undergo simulated operation for testing under test conditions in order to test under pressure.
Key Features
High Precision: Investment casting in water-glass is of a very high precision in casting complicated valve parts.
Excellent Surface Finish: The process of casting produces a part in a nearly net shape, minimizing subsequent machining.
Strength and Resistance: The castings possess excellent mechanical properties, for example, excellent tensile strength and abrasion and corrosion resistances.
Corrosion Resistance: The steel alloys and stainless steel have a resistant capability against corrosion, making these castings well-suited for difficult valve applications.
Packaging and Storage
After the casting, valve is packed in such a manner so it is not harmed in transit. Rust is generally averted by using protective paints, and component is left in a controlled environment so its quality is maintained. Custom packaging solutions can be formulated for large, delicate, or oversized pieces for secure delivery.
Shipment
Castings are shipped via secure courier operators. Some of it can be shipped via sea, road, or airplane based on destination. Protective packaging keeps it in ideal shape, and track systems allow clients to track it in real-time.
