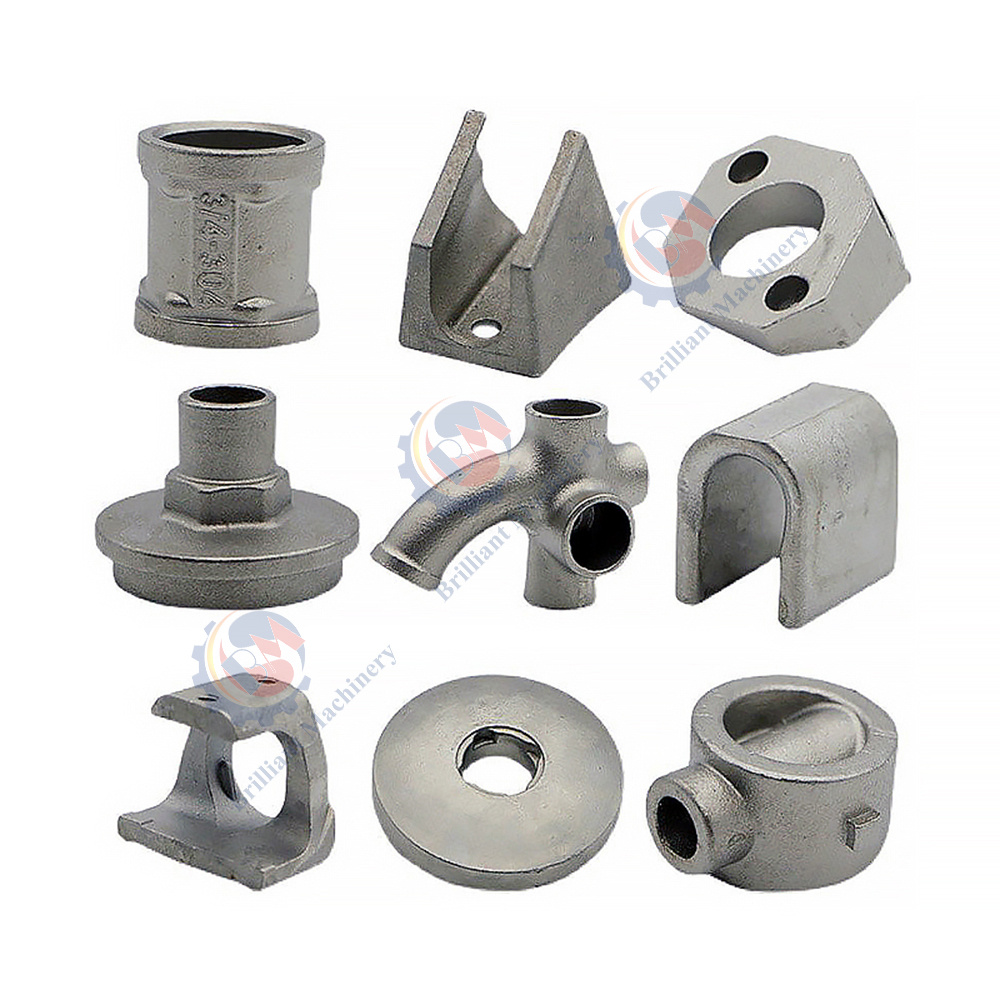

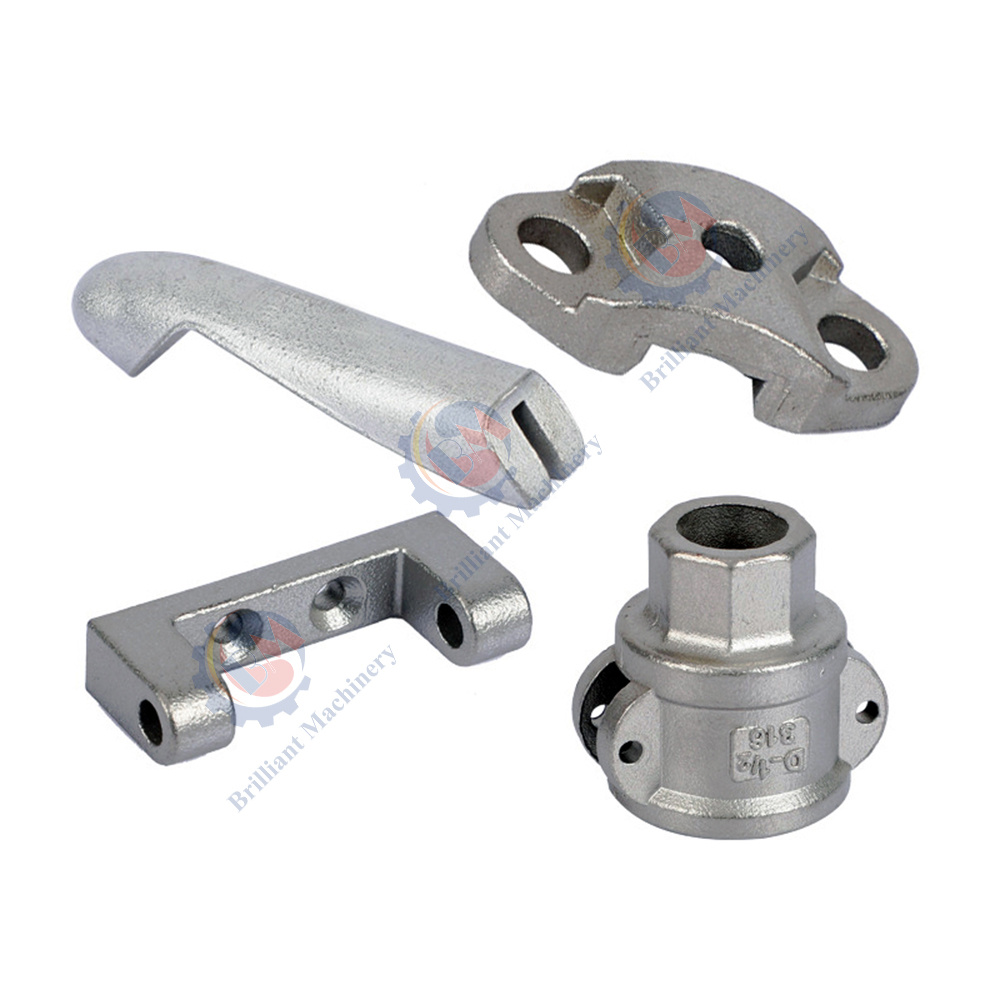

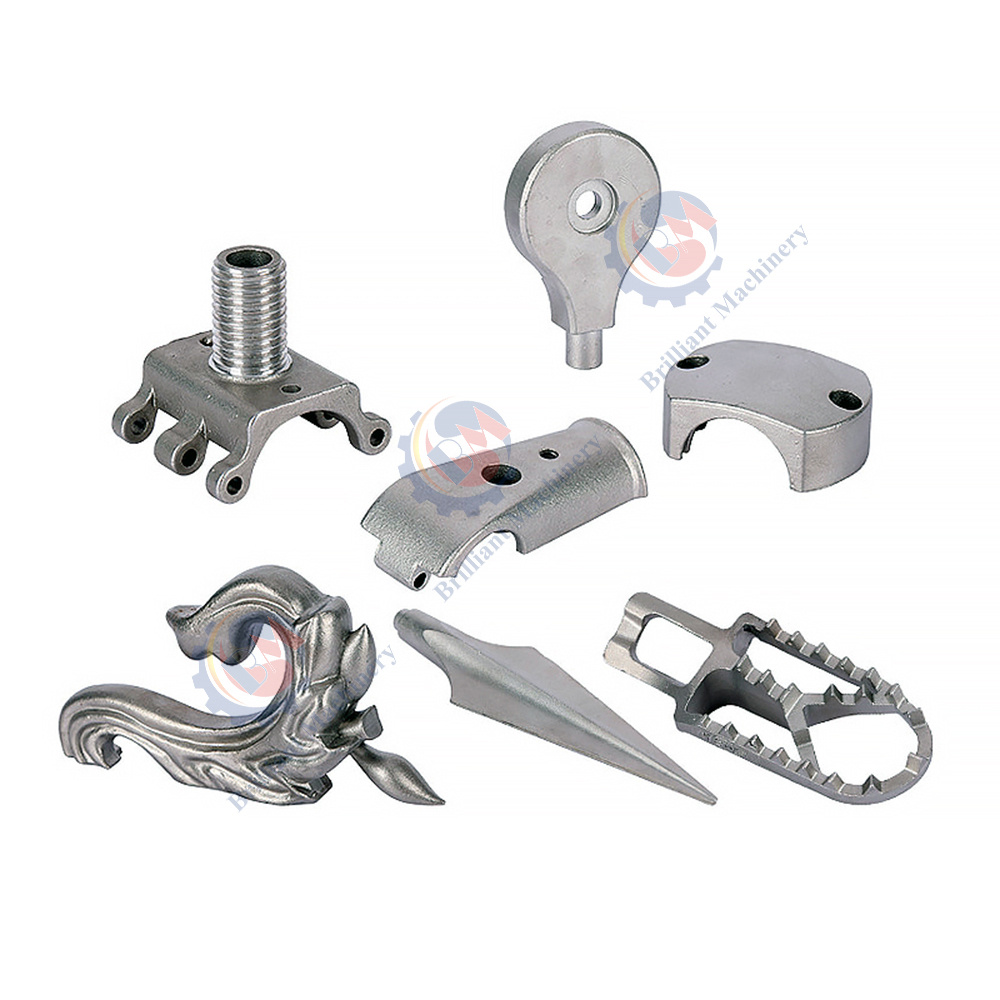

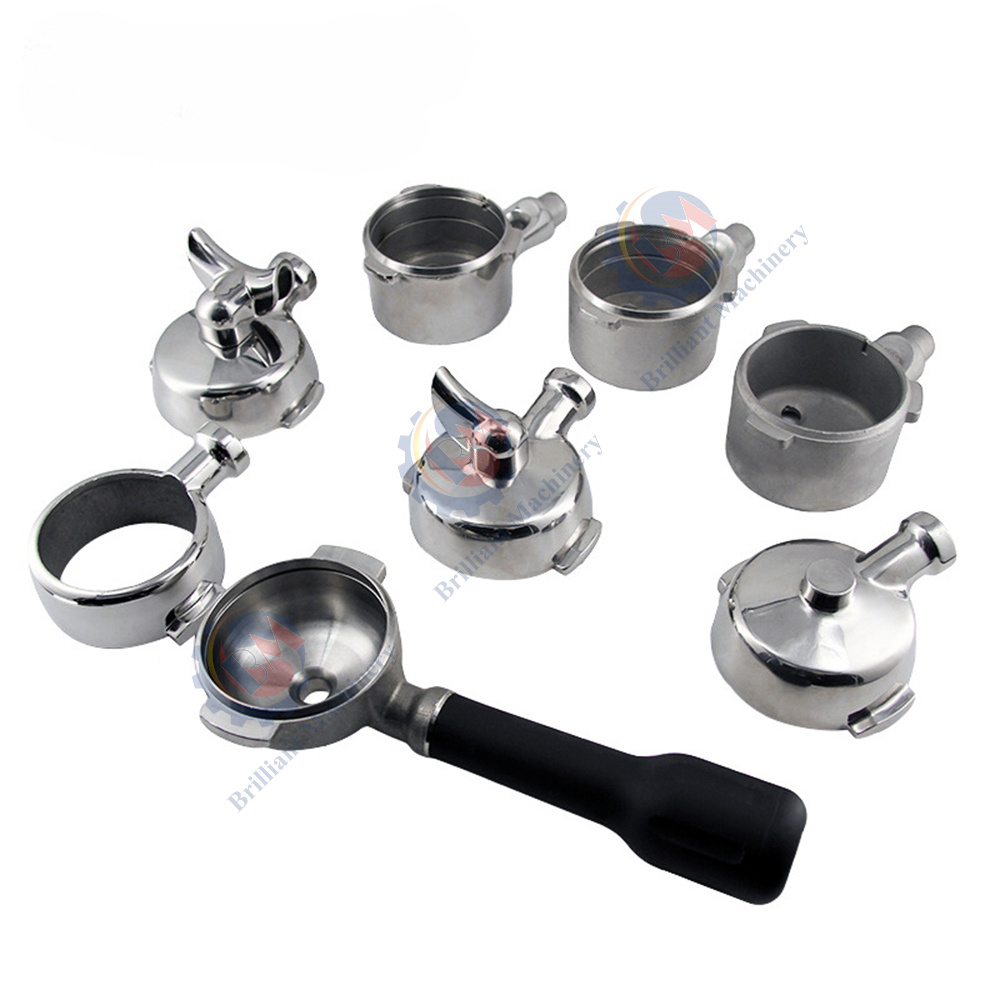

Silica Sol Investment Castings for Industrial Machinery
Material
The material for investment casting of silica is of first preference in guaranteeing durability, abrasion, and tensile strength. The materials typically comprise of:
• Stainless Steel: Very resistant to corrosion, perfect for industrial usage in parts which experience exposure to chemicals and damp.
• Alloy Steels: Used in those parts which require greater toughen, these steel resist excessive stress and severe working environments.
• Nickel Alloys: Alloys of this kind are appropriate for under temperature or corrosive environments.
• Carbon Steel: The tried-and-tested go-to for durability, cost-effective machinery componentry.
Each material is chosen in an effort to meet individual machinery usage requirements, resulting in lasting operation in challenging environments.
Specifications
Silica sol investment casting is highly consistent and accurate, in these large dimensions:
• High Precision: Can achieve part size fine tolerance of ±0.2 mm.
• Smooth Surface Finish: The process yields highly polished surfaces on the parts, reducing post-processing.
• Excellent Material Qualities: Castings have been developed for industrial machinery in a bid to achieve mechanical, temperature, and resistant-to-corrosion properties.
• Durability: The durability is assured owing to using first-rate materials, which can sustain excessive loading and extreme operation environments.
Production Processes
1. Pattern Creation: The component is constructed in a detailed pattern, which is classically in wax or a wax-like material.
2. Mold Formation: The shape is encapsulated in sand and shells of silica sol for forming a hard mold.
3. Wax Removal: The mold is melted so it pours off the pattern, leaving a part shape in an unoccupied space.
4. Metal Pouring: The mold is filled with molten metal using pouring.
5. Cooling & Finishing: The part is extracted once it cools down, cleaned, and completed as per design requirements.
Quality Test & Inspection
All castings undergo stringent checks of quality in an effort to meet industry standards:
• Dimensional Verification: The process of all of the component for tolerance requirements.
• Material Composition Testing: Testing for material properties in relation to requirements.
• Non-Destructive Testing (NDT): Application of methods such as X-ray and ultrasonic testing in order to identify internal flaws.
• Pressure & Stress Testing: Component capability under operation pressure testing.
Key Features
• Exceptional Accuracy: The investment casting process utilizing silica sol is ideal for producing complex geometries of critical tolerance.
• Superior Surface Finish: The casting process allows for a fine, uniform surface, reducing secondary machinating.
• Versatile Materials: Metals can be composed of a wide variety of materials based on different industrial requirements.
• High Strength and High Resistance: The materials selected take advantage of their capability of operation under extreme stress and stringent environments.
Packaging and Storage
Finished parts are packed in a careful manner so that in transit, they won't be damaged. Assurance of component integrity is enabled by materials such as foam and rigid cartons in packaging. Castings are warehoused in temperature-controlled facilities in a bid to preserve their quality before being shipped.
Shipment
Industrial machinery casting is shipped in a precautionary process so when it is reached in destination, it is in impeccable condition. The consignment is followed in a secure process so there is timely delivery and utmost care in consignment process.
