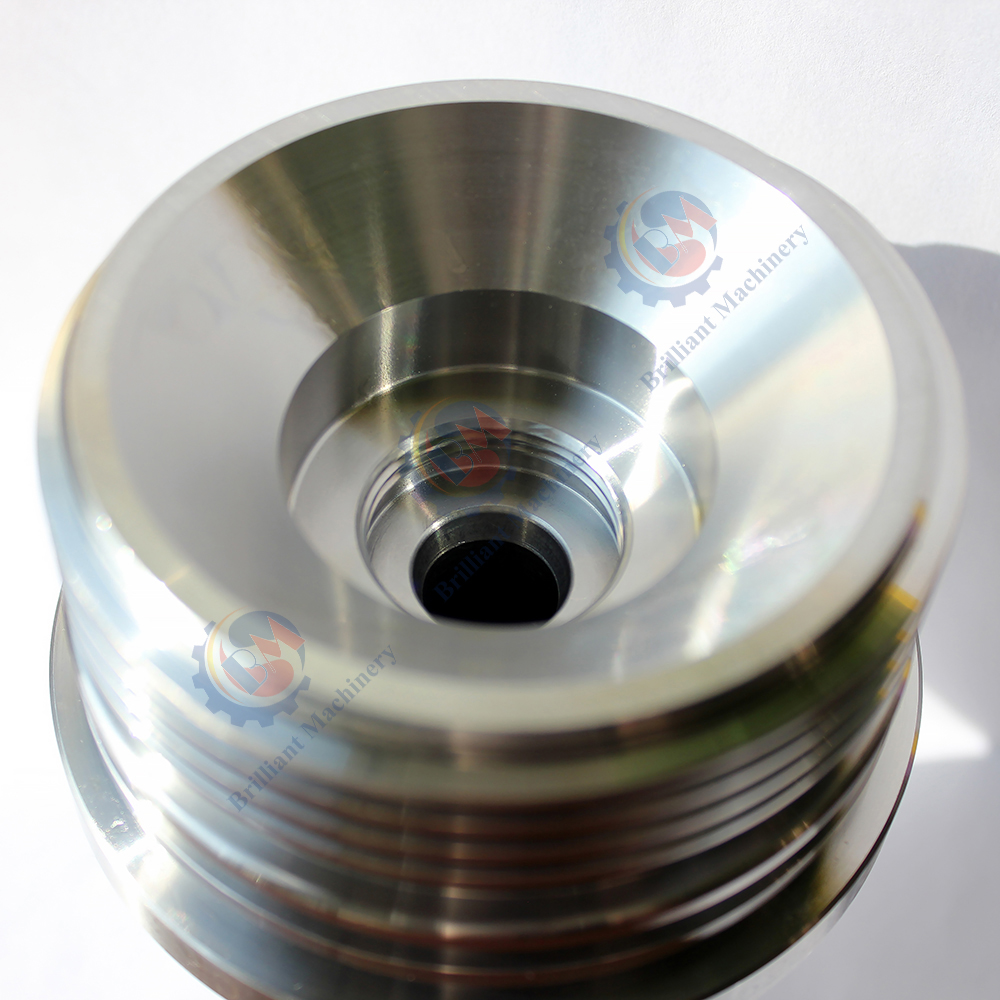

O.D. 2", Upper Thread Type 1-3/16-12STUB ACME-2G, Lower Thread Type 1-11/16-8 STUB ACME-2G, Top Subs for Perforating Guns
Material
Made of top-grade steel, the premium subs are specifically made with the rigorous requirements of downhole application in place. The material is specially selected based on superior strength, fatigue life, and resistance against corrosion and has the strength of withstanding the higher-temperature and higher-pressure environments typical of the drilling of the oil and gas formations. The alloy steel is subjected to cutting-edge processes of heat treatment with the intention of augmenting the strength and overall functioning of the steel in harsh environments.
Specifications
• Outer Diameter (O.D.): 2 inches and comes with a fit with a multitude of perforating gun assemblies.
• Upper Thread Type: 1-3/16-12STUB ACME-2G with firm and stable top joint
• Lower Thread Type: 1-11/16-8 STUB ACME-2G, a lower that guarantees a stable
• Material: High-strength rust-resistant steel alloy with the greatest strength and highest rust resistance.
• Length: Customizable dependent on the specific perforating gun configurations.
• Pressure Rating: Support the tremendous pressures of standard petroleum and natural gas wells.
|
Sub O.D. |
Upper Thread Type |
Lower Thread Type |
Pressure Rating |
Approx. Weight |
|
2" |
1-3/16-12STUB ACME-2G |
1-11/16-8 STUB ACME-2G |
25,000 psi [172Mpa] |
3.3lb [1.5kg] |
Production Processes
1. Forging: The metal is forged into a shape that guarantees highest strength with minimal wastage of the material.
2. Machining: Precision CNC machining technology has been utilized in the manufacturing of the precise threading profiles that perfectly match the perforating gun system.
3. Heat Treatment: The subs also receive a specialized heat treatment that increases the subs' temperature and resistance against corrosion.
4. Thread Cutting and Final Finishing: The threads are properly cut such that tight and leakage-tight joints between the top and the lower halves of the perforating gun are established.
5. Final Inspection: The subs once complete are subjected to rigorous inspection in an attempt at adhering to rigorous standards of quality, such as dimension checks and pressure testing.
Quality Test & Inspection
The 2" Top Sub goes through rigorous testing to assure outstanding performance:
• Dimensional Testing: The actual measuring of the thickness of the threads and the dimension to enable a proper fitment.
• Pressure Testing: Each sub is subjected to high-pressure conditions to confirm its ability to withstand the intense pressures encountered in well environments.
• Material Integrity Tests: The tensile strength of the steel and the wear-resisting and harsh environment-resisting abilities of the steel are put to tests.
• Thread Inspection: Ensures the thread profiles do not contain any faults and provide a good fit between members.
Key Features
• Dual Thread Design: The top and the lower 1-3/16-12STUB ACME-2G and 1-11/16-8 STUB ACME-2G threads fit perfectly and will not wear with use.
• High-Strength Construction: Made of heat-treated steel that guarantees superior strength and operation at elevated temperature and pressure.
• Precise Machining: CNC machining ensures an impeccable fit of each part with no leakage during application.
• Corrosion and Fatigue Resistance: Engineered with a view of surviving the harsh environment of the drilling operation of the oil and gas industry.
• Versatile Use: Compatible use in multiple perforating gun systems with the added advantage of efficiency and safety.
Industry Applications
The O.D. 2" Top Sub is a critical component used in the oil and gas industry for well completion and hydraulic fracturing operations. It is specifically designed for:
• Perforating Gun Completions: Positioning assemblies of perforating guns in a firm and stable manner.
• Hydraulic Fracturing: Enhancing the stability of perforating gun assemblies throughout the processes of well stimulation.
• High-Pressure Well Operations: Thriving in the rugged environment of heavy usage of a well.
