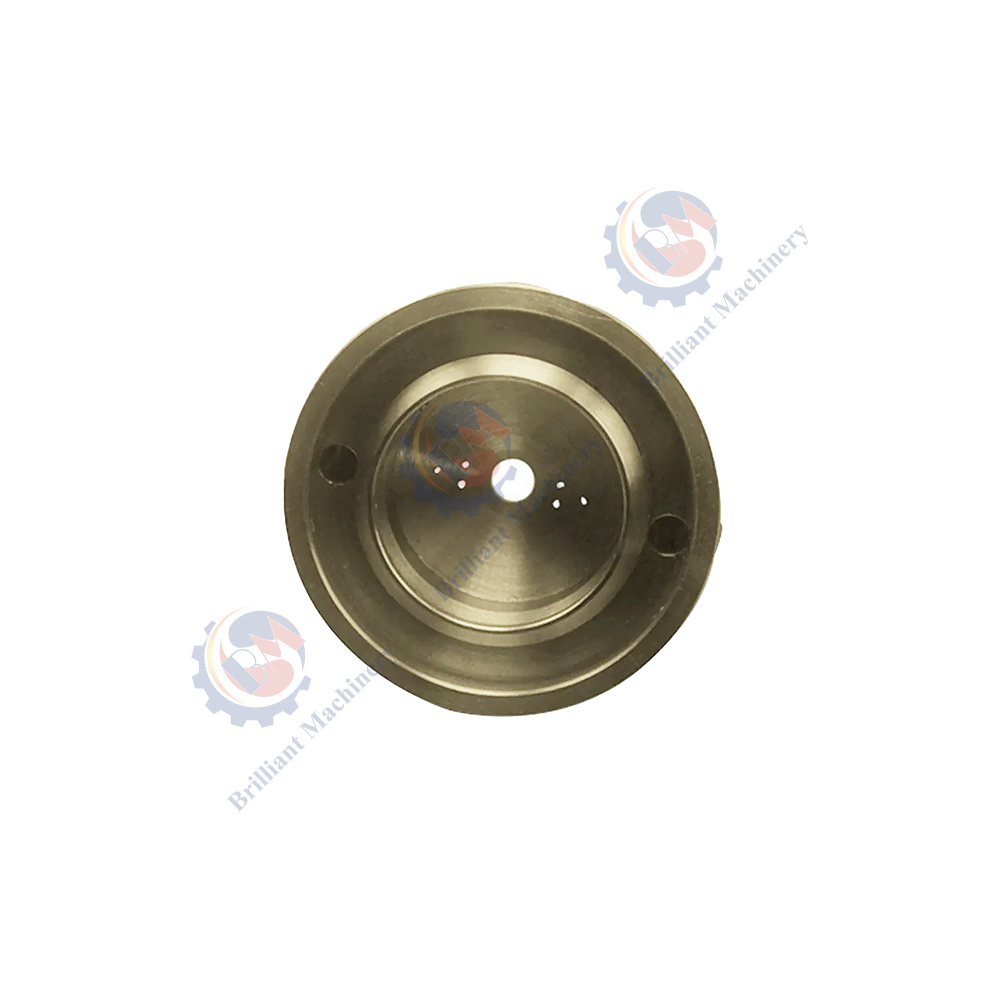

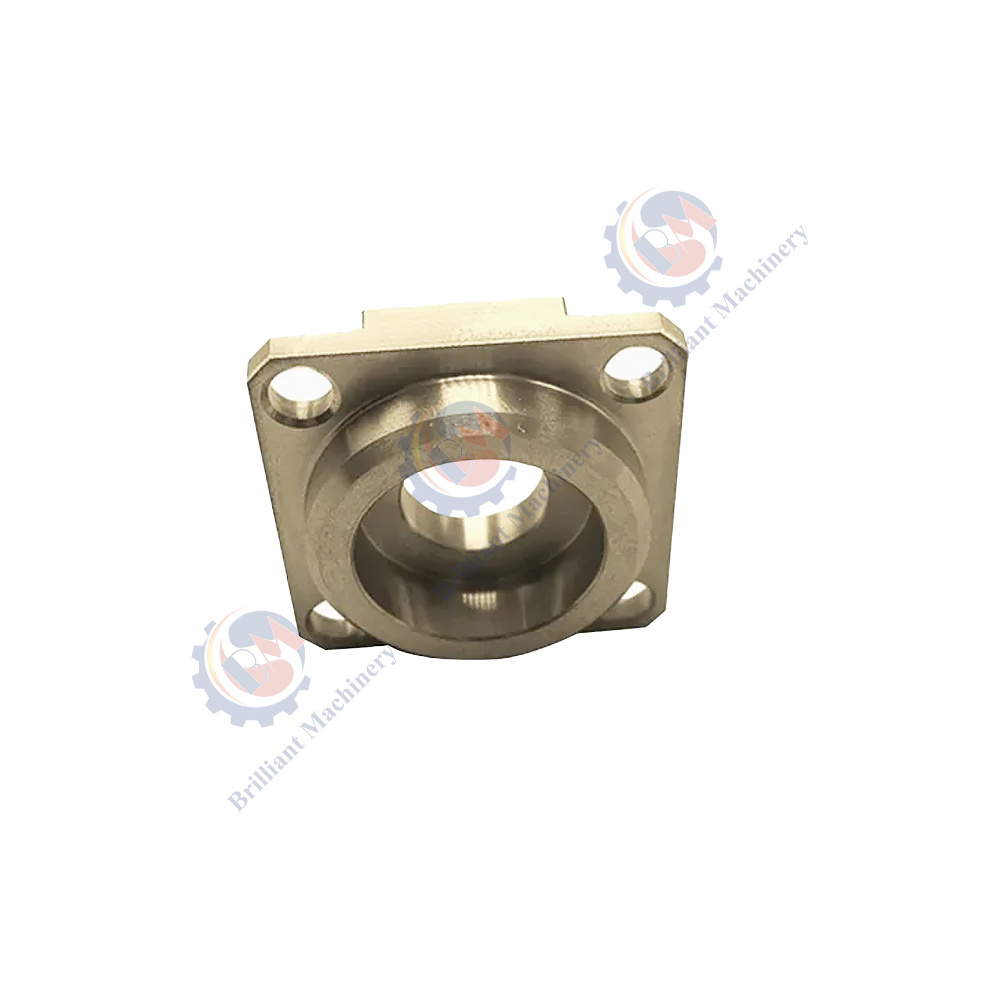

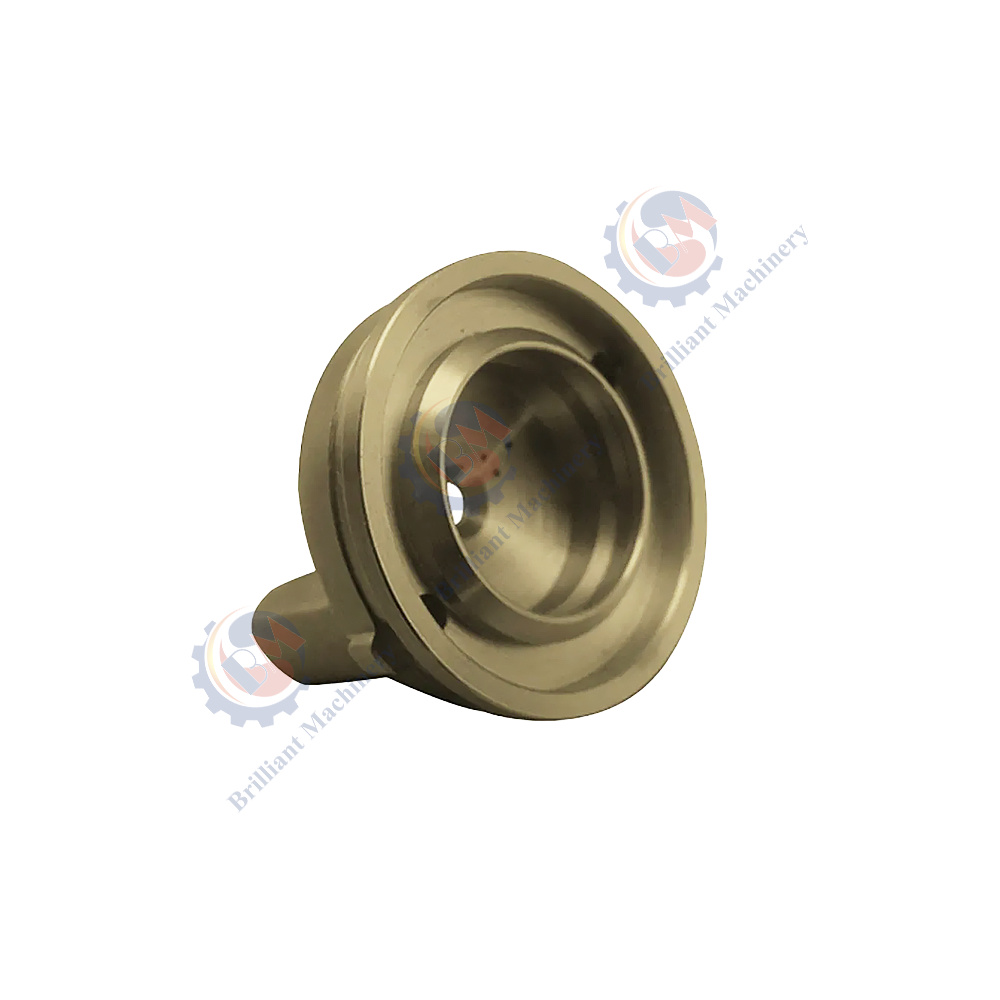

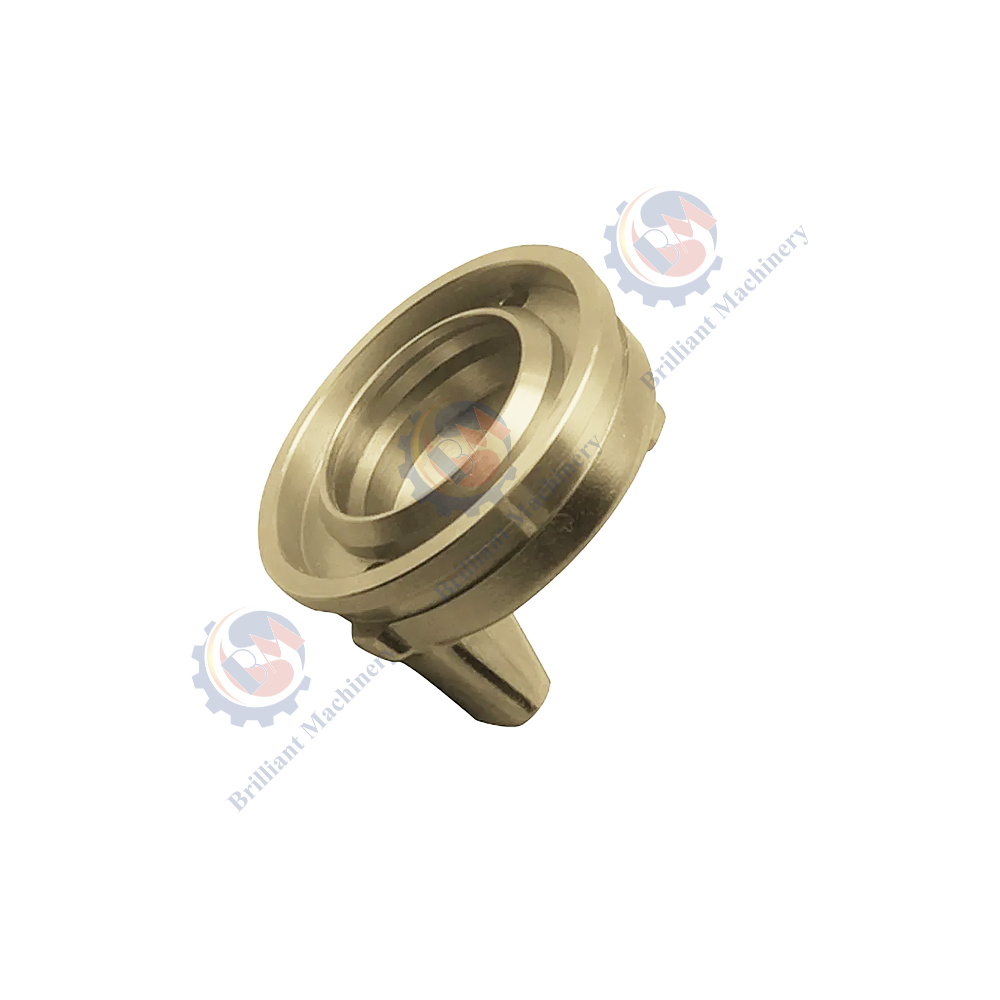

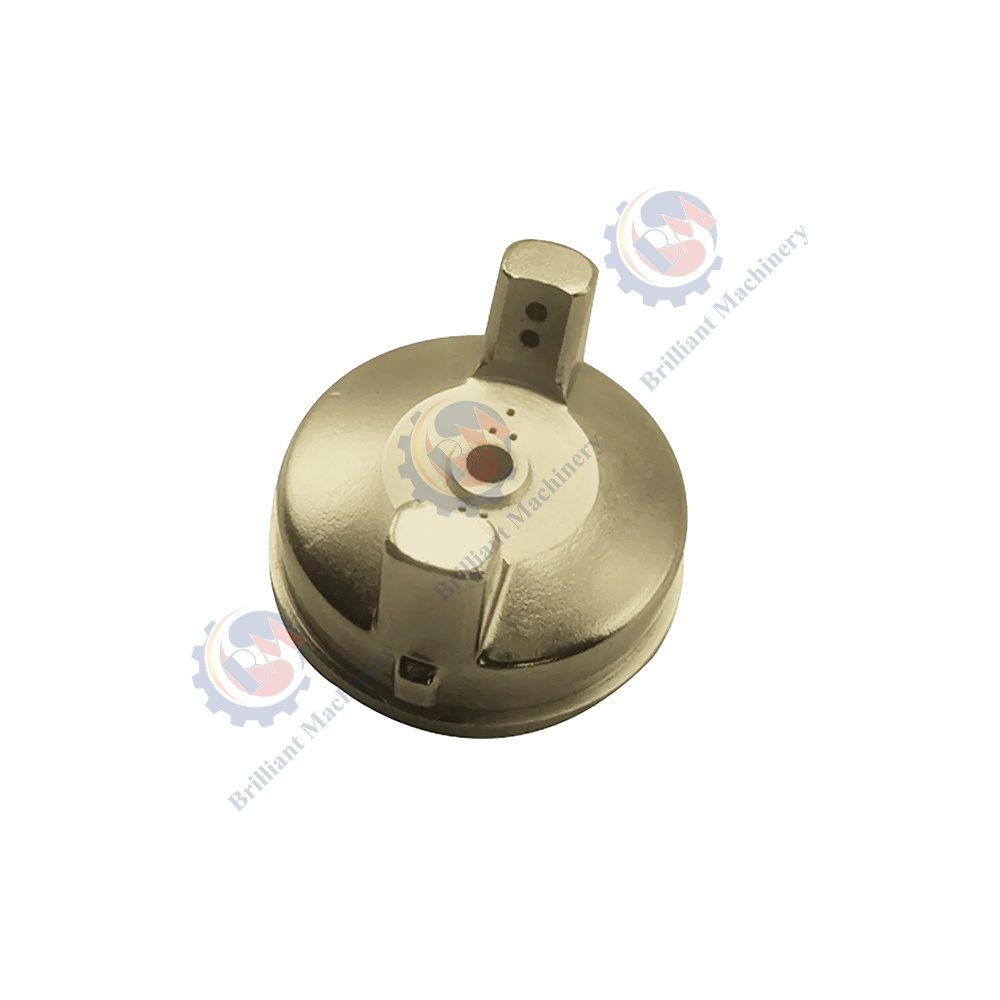

Copper Alloy Die Castings for Electrical and Electronics Industry
Material
• Copper-Zinc Alloys (Brass): The material preferred in switches, switches' connections, and similar devices, copper-zinc alloys are a great combination of durability, conductibility, as well as resistance from corrosion.
• Copper-Nickel Alloys: They are utilized in those areas which have high demands towards resistance from corrosive action as also high-performance demands in aggressive environments, i.e., in water-resistant as also moisture-resistant electric connections.
• Copper-Tin Alloys: Because it is abrasion-resistant, copper-tin alloy is also used in areas with abrasion-prone parts that have a greater need for durability over a given timeframe.
Specifications
• Electrical Conductivity: The electrically highly conductive copper alloy is a wonderful connector, terminal, as well as component in electronics.
• Corrosion Resistance: The alloy is highly effective in rust resistance as well as in resistance from corrosion, which is highly essential in case of chemicals as also moisture in contact with electronics.
• Tensile Strength: The excellent tensile resistance in copper-based alloys makes parts vibration-resistant as also immune from mechanical stress, not weakening in operation.
• Thermal Conductivity: The high heat dissipative character makes copper alloy appropriate in application fields that have heat management efficiently in perspective, i.e., heat sinks or electric contacts.
Production Processes
1. Die Casting: The copper alloy material is melted and pressed at high pressure into highly precise moulds, shaping each component into a specified shape.
2. Cooling and Solidification: The material is quenched rapidly and solidified in shape conformity with mould with dimensional tolerancing as is appropriate in electric devices.
3. Machining and Finishing: The castings are machined from castings with trimming, drilling, as well as polishing in a bid to attain surface refinement as much as fit as well as functionality tolerances.
4. Surface Treatment: To give additional durability as well as resistance from corrosion, surface treatments can be made in terms of coating or plating in order to be able to withstand in case of application.
Quality Test and Inspection
• Dimensional Accuracy: The components are thoroughly checked in a way that they meet technical requirements in terms of dimensions. Specialized instruments such as micrometers, as well as calipers, are used in making precise measures.
• Electrical Testing: Because it is also critical in electric utilization, units are also electrically tested with a look towards establishing resistance as well as conductibility in relation to acceptable requirements.
• Corrosion Resistance Testing: Salt spray or immersion tests are conducted on copper alloy parts in an attempt to duplicate environmental exposure as a means of determining whether these are corrosive-resistant.
• Mechanical Strength Testing: Tensile tests and fatigue tests ensure that the castings maintain their strength and functionality over time, even under continuous stress.
Key Features
• Superior Electrical Conductivity: There is no equal to copper alloys in electric conducting, which is why in application in devices like breakers, terminals, as well as in connectors.
• Excellent Durability: The alloys have great resistance to wear and can be withstood over extended durations without degrading, which ensures that electronic systems are durable.
• Corrosion Resistance: The corrosive chemicals, moisture, as well as aggressive environmental conditions, are withstood by copper alloy, which maintains the parts in a functional condition over a longer period.
• High Precision And Reliability: The die casting process casts each product with high precision as per high requirements of electric as well as electronics industries.
Industry Applications
• Connectors and Terminals: Connectors and terminals are copper alloy castings that form reliable, tough connections in power supplies, electric panels, as well as electric circuits.
• Switches and Relays: The switches as well as relays made from these alloys are also used in switches that manage electric currents in a variety of devices.
• Heat Sinks: The copper alloy is utilized in heat sinks in a move to dissipate heat from heat sources in heat-sensetive devices like CPU, GPU, as well as power transistors.
• Circuit Breakers: The manufacturing of circuit breakers is dependent on copper alloy castings as a material that is vital in safeguarding electric circuits from overloads as well as faults.
• Electrical Contacts: The high conducting quality copper alloy makes it appropriate as electrical contacts in devices such as motors, transformers, as well as domestic appliances.
Packaging and Storage
Copper alloy castings are handled with care not physically be physically damaged in transportation. The castings are wrapped in foaming material or bubble pack material and are placed in durable boxes not physically cause shock. In order not cause oxidation as well as corrosion, castings are supposed be in dry conditioned areas with no chemicals as well as humidity.
Shipment
Once inspected and packed correctly, castings are exported from customers from all over the world. The transporting is carried out in a way that makes deliveries on time in a healthy condition. Plane, ship, or truck is utilized as a means depending on destination, with multiple means available in order to track progress.
