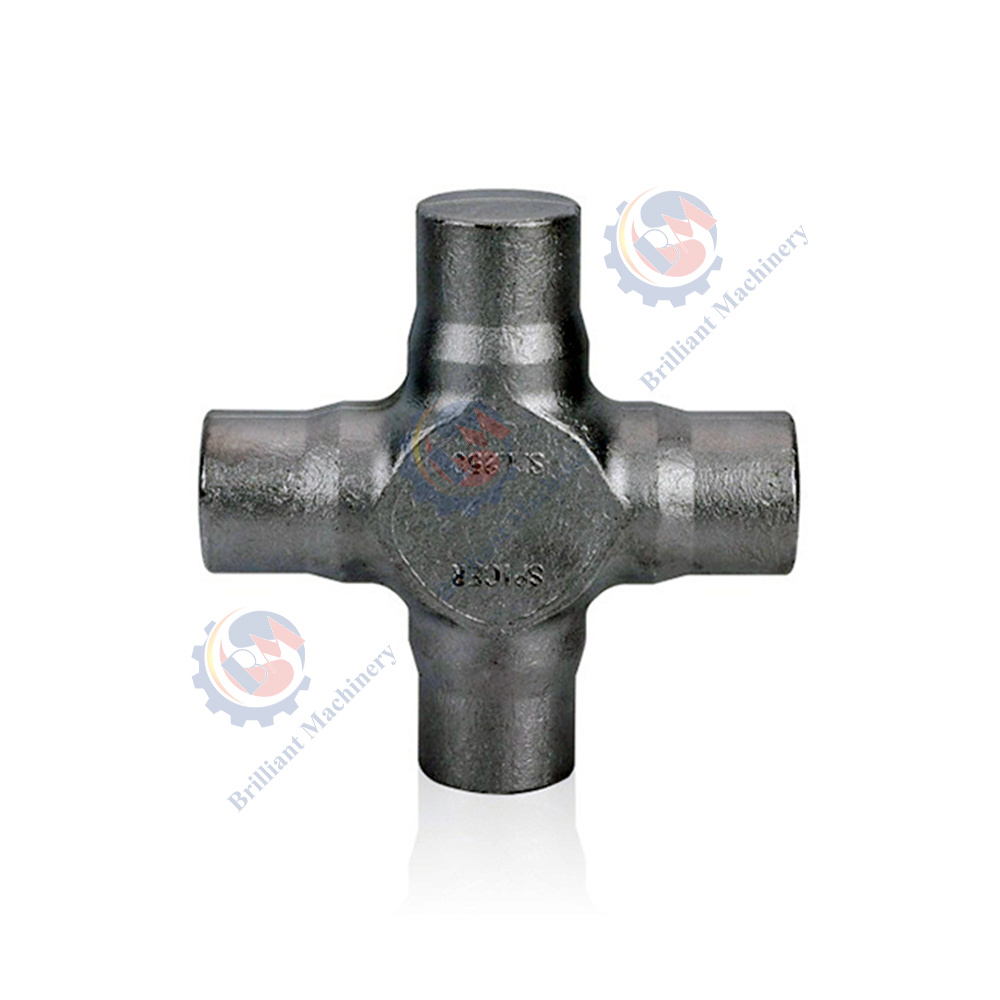

Cold-forged or Cold-extruded Crosshairs
Material
Crosshairs are constructed using stainless steel of high-strength material, along with tungsten alloys, which have been chosen for stability in environmental conditions and for durability. The stainless steel provides it with durability, along with corrosion-resistance, and the tungsten alloys provide it with excellent abrasion-resistance, making it ideal for stress-bearing environments. The materials go through cold-forcing and cold-extruding in a process for improved mechanical properties so each crosshair can perform when in action.
Specifications
• Material Types: stainless steel or tungsten steel.
• Dimensions: Customized dimensions according to client requirements
• Hardness: 50-60 HRc for stainless steel, 80-90 HRc for alloys of tungsten
• Tolerance: Manufactured to tight tolerances, ensuring high precision
• Surface Finish: Smoothening polished so there is optical non-distortional clarity.
• Shapes: Circular, rectangular, and custom designs for various purposes
• Temperature Resistance: Operate in a temperature of between -40°C and +200°C
Production Processes
1. Cold Forging: The material is cold shaped under extreme stress, which makes it stronger and more resistant to abrasion without being heated. The process is minimal in material loss and enhances mechanical properties of crosshair.
2. Cold Extrusion: The material is highly, mass-produced by being driven under pressure through a die, adopting its desired shape. The process can achieve uniform size and polished surfaces for optical transparency.
3. Finishing & Machining: The crosshairs are machined under stringent tolerance in a process. The surfaces are polished for transparency, and other treatments (i.e., coatings) are applied for additional protection.
4. Heat Treatment (if required): Some of these crosshairs can go through a process of heat treatment for hardening and improving wear-resistance, especially for enhanced performance.
Quality Test and Inspection
• Dimensional Checks: The component is checked for its size and tolerance levels.
• Visual Inspection: The optical transparency and surface blemish is carefully controlled in an effort of attaining best standard.
• Material Integrity Tests: Tests for material validation of resistance against abrasion, corrosion, and environmental factors.
• Load Testing: In highly stress-needed programs, each crosshair is stress-tested in a position so it can endure anticipated usage forces.
Key Features
• Precision Engineering: Designed under highly stringent specs for critical precision applications.
• Durability: Cold-forged and cold-extracted production makes each crosshair more resistant to wear and extends its lifespan.
• Clear Visibility: Shiny, polished surfaces provide unwarped optical clarity, which is critical for true measurements and lining-up.
• Corrosion Resistance: The stainless steel and tungsten in it provide excellent erosion and resistivity against rust.
• Customization: Available in different shapes and size options in order to suit individual requirements in optical systems or mechanical systems.
Industry Applications
• Optical Sights: Installed in riflescopes, telescope sights, and in binoculars for accurated focusing and on-targeting.
• Surveying Equipment: Implemented in total stations, theodolites, and laser measurers for accurated measurements and alignment.
• Microscopes & Laboratory Equipments: Extremely critical for medical and scientific microscopes for observations of minute details.
• Industrial Measuring Tools: Appropriate for laser micrometers, coordinate machines, and other precision machines.
Packaging and Storage
Each crosshair is packed in protective, anti-static packaging materials individually so it is not harmed in transit. Custom boxes and foam inserts facilitate secure shipping and handling. They have to be handled in a dry, clean location in an effort to preserve functionality and protect it against exposure to corrosives.
Shipment
We offer airmail, sea, and ground freight based on urgency and destination. We track meticulously so your package is on time and in perfect condition. We provide all custom forms necessary for hassle-free export.
