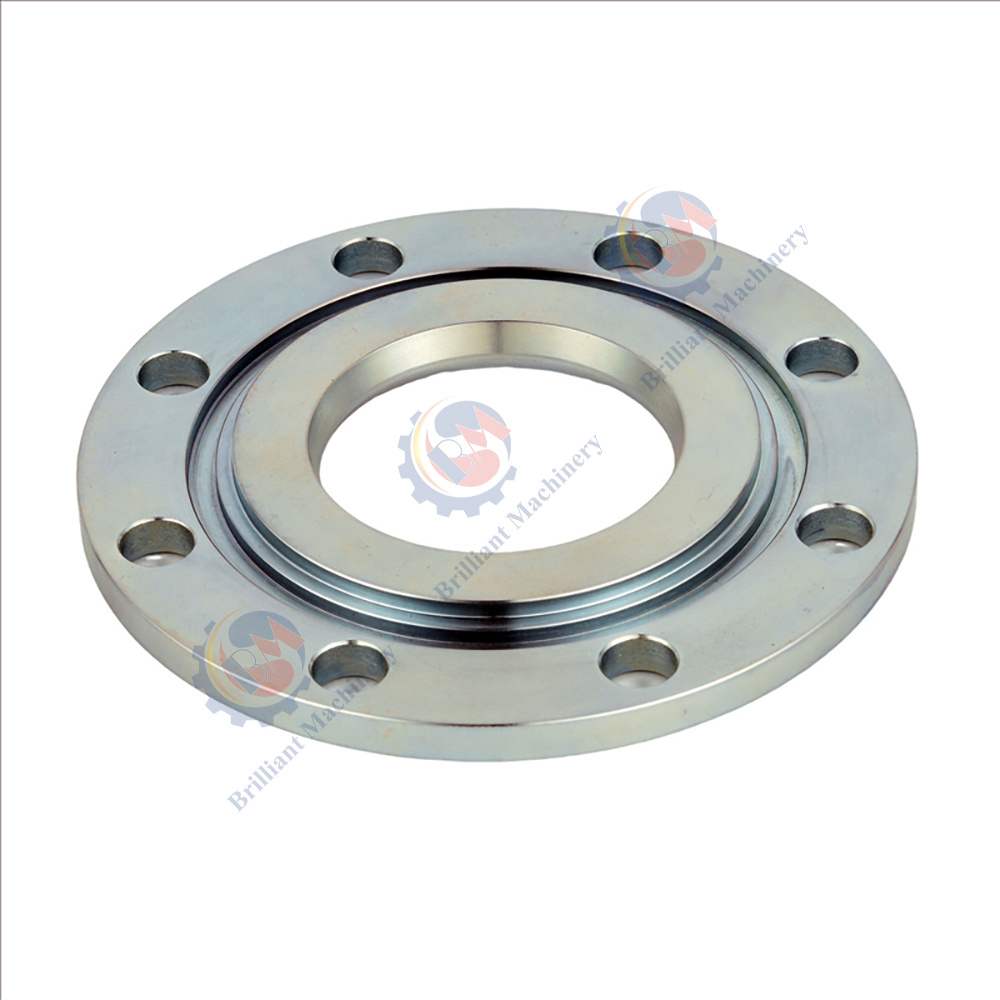

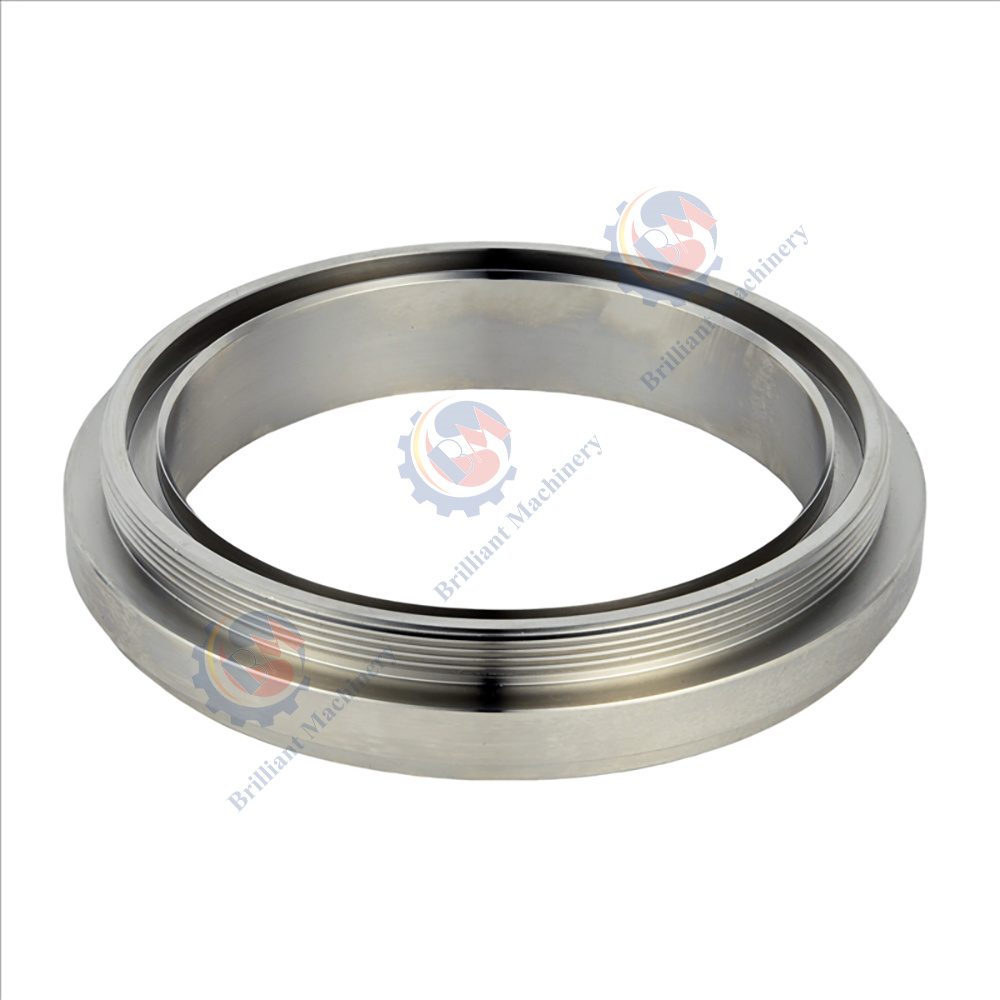

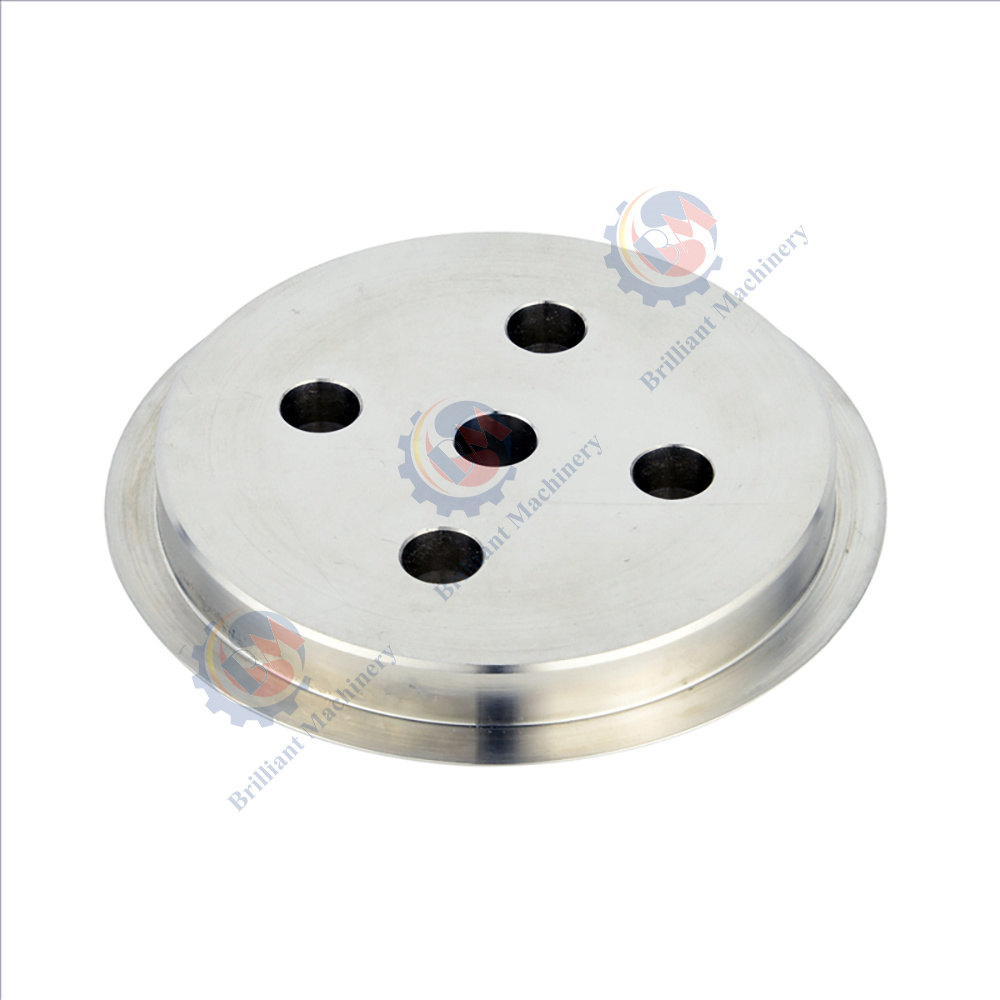

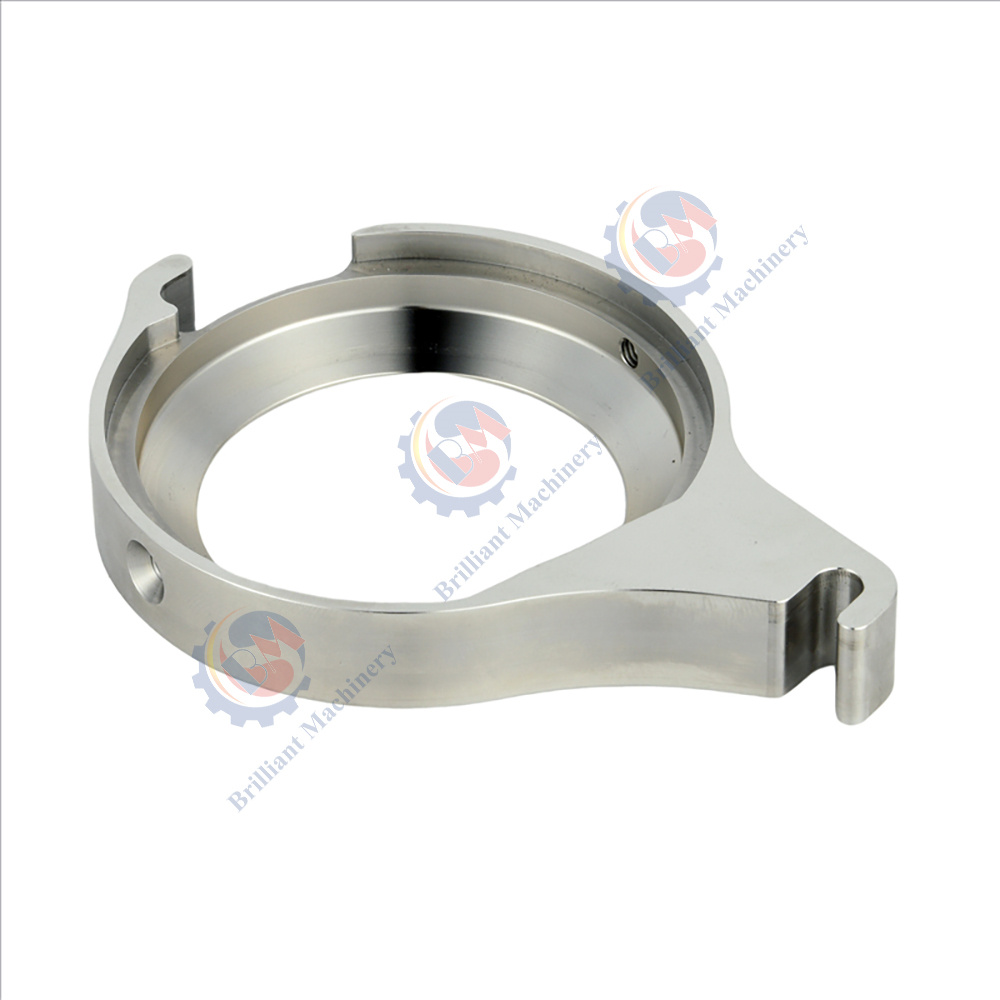

CNC Turning Parts for Medical Devices
Material
• Stainless Steel (304/316): Stainless steel is extensively used in medical devices because it is highly resistant, biocompatible, and also simple in terms of sterilization. Stainless steel is ideal in making surgical instruments, connectors, as well as housing.
• Titanium Alloys: The light character with high strength-to-weight ratio makes titanium renowned. The material is also used in dental devices, orthopedic devices, as well as some critical devices in healthcare that are in high demand with a need for both biocompatibility as well as strength.
• Aluminum Alloys: Being light in weight and corrosion-resistant, aluminum is ideal in making parts such as casings of diagnostic devices, infusion devices, and monitoring devices, wherein durability as well as light weighting is critical.
• Copper Alloys: Copper alloys are used in applications requiring excellent conductivity and antimicrobial properties, making them ideal for electrical components and parts that require antimicrobial properties.
Specifications
• Tolerance: CNC turning allows us to produce highly accurate parts with a mere ±0.005 mm tolerance that are essential in making devices in medical devices functional with high precision.
• Part Complexity: The complexity in parts is attained in CNC turning with threaded holes, groove, as well as surface finishes specialized in medical device parts.
• Surface Finish: The material can be developed with a range of finishes from a rough surface to a mirror-like surface, both as a functional requirement in a medical device as also in its sterilisation process.
• Customization: Custom dimensions, shapes, as well as finishes can be offered that can be tailored as per each application in medical devices.
Production Processes
1. Design & Programming: The production cycle is initiated with a full design and CNC code development. The design is coded into machine instructions in order to manufacture with high precision.
2. CNC Turning: The material is laid on a high precision machined CNC lathe in a bid to achieve the required dimensions. The turning operation, which also encompasses drilling as well as cutting, is conducted with great precision.
3. Secondary Operations: After turning operation, some secondary operations i.e. polishing, threading, coating can be made available in order to meet functional as well as aesthetic demands.
4. Inspection & Testing: All parts are thoroughly inspected and thoroughly tested in order to meet requirements in the medical sector. The methods involved are dimensional checks, visual examination, as well as functionality checks.
Quality Test and Inspection
• Dimensional Precision: The parts are measured in order to meet stringent dimensional tolerances necessary in medical devices wherein precision is a key consideration.
• Sterility and biocompatibility: Medical devices also have to be biocompatible as well as meet sterility demands. Testing is carried out in a way that devices are free from contaminants that will cause adverse body reaction.
• Surface Quality: Testing is conducted in a bid to have a surface that is free from defects that will impact both functionality as well as device safety.
• Material Integrity: Sophisticated non-destructive examination technologies in terms of X-ray examination or ultrasonics examination are utilized in a bid to create material integrity as much as durability in medical device components.
Key Features
• High Precision: The turning is highly accurate with each product guaranteed to meet stringent requirements that are critical in healthcare industries.
• Material Compatibility: Medical-grade materials like stainless steel, titanium, and aluminum ensure biocompatibility and compliance with health and safety regulations.
• Complex Geometries: The biggest benefit with CNC turning is that we can produce highly precise features with very minute threads, high-tolerance, high surface quality which is highly critical in high-performance demands in medical devices.
• Customization: Parts can be customized as per client demands, with specialized dimensions, shape, as well as surface finishes.
Industry Applications
• Surgical Instruments: CNC turning is also used in an effort to create surgical screws, scalpel handle, as well as surgical device guide rails with high quality.
• Dental Devices: The precision and material flexibility that can be achieved with CNC turning makes dental device parts, implant parts, as well as orthodontic instruments more efficiently made.
• Diagnostic Equipment: CNC turning is also implemented in manufacturing precision machined parts in manufacturing diagnostic devices which entail connector, housing, as well as probe.
• Patient Monitoring Systems: CNC turning parts are also used in manufacturing housings, brackets, and connectors that are a critical component in medical monitoring devices, offering reliable operation as well as toughness.
Packaging and Storage
After manufacturing as also quality check, CNC machined medical parts are packed with care in non-destructive anti-static, protective boxes. The parts are warehousing in a non-bacterial contaminated clean room as some are specifically surgical or as implant.
Shipment
Parts are sent securely via suitable means, i.e., air freight or ground freight, in order to deliver on time. In case of sensitive goods, shipments are made with insulated packaging or expedited shipping in order not to cause any delay.
