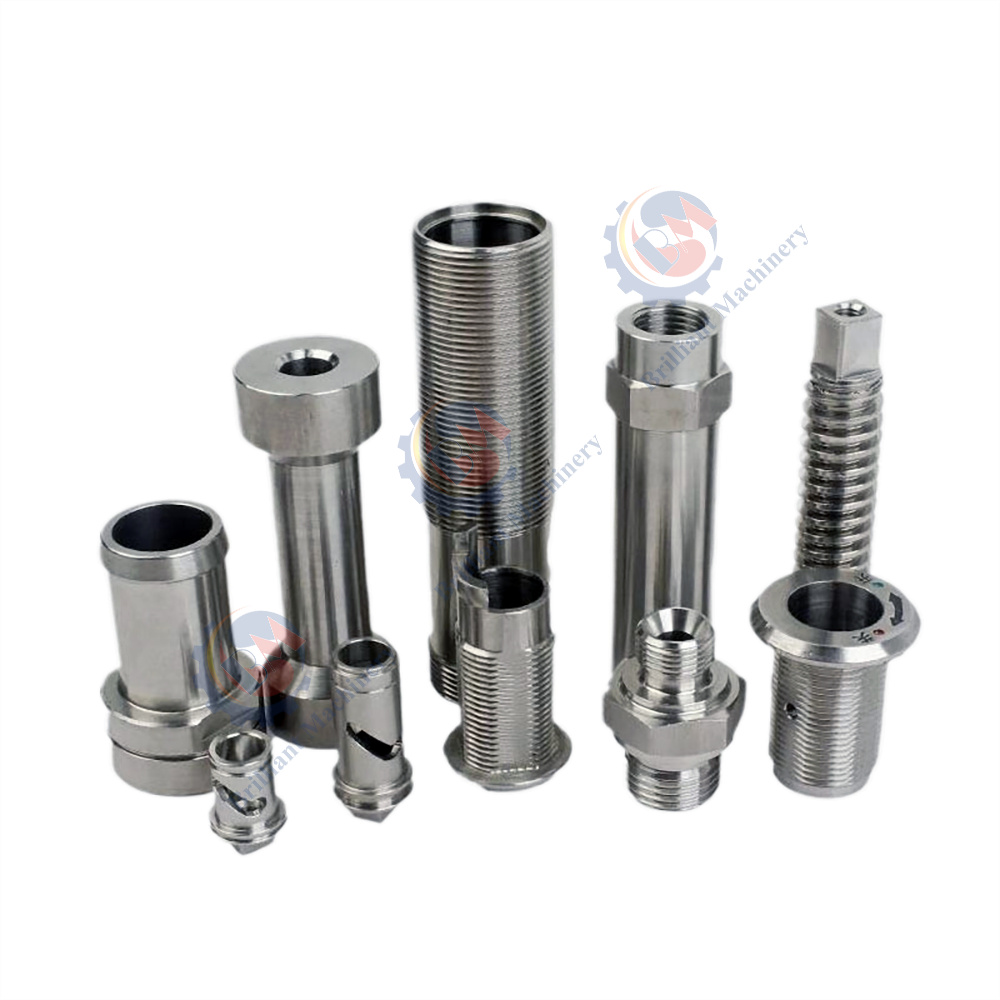

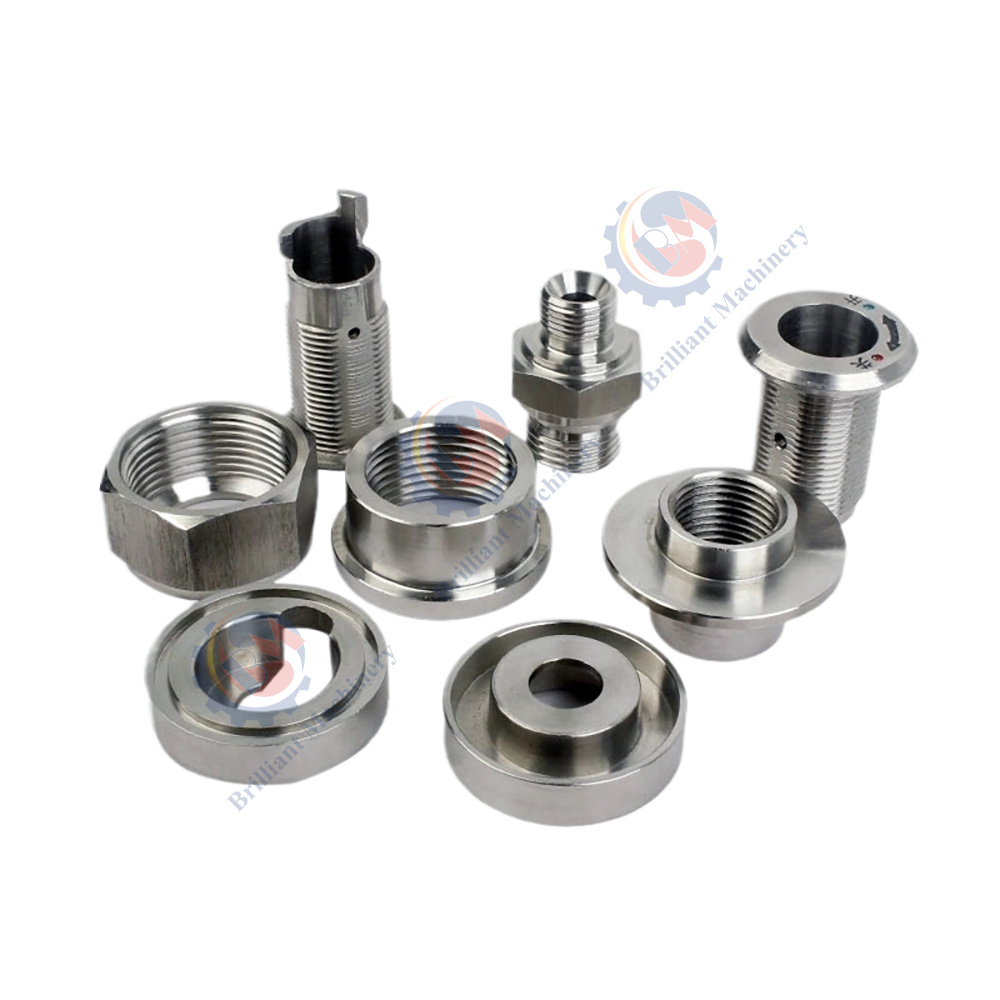

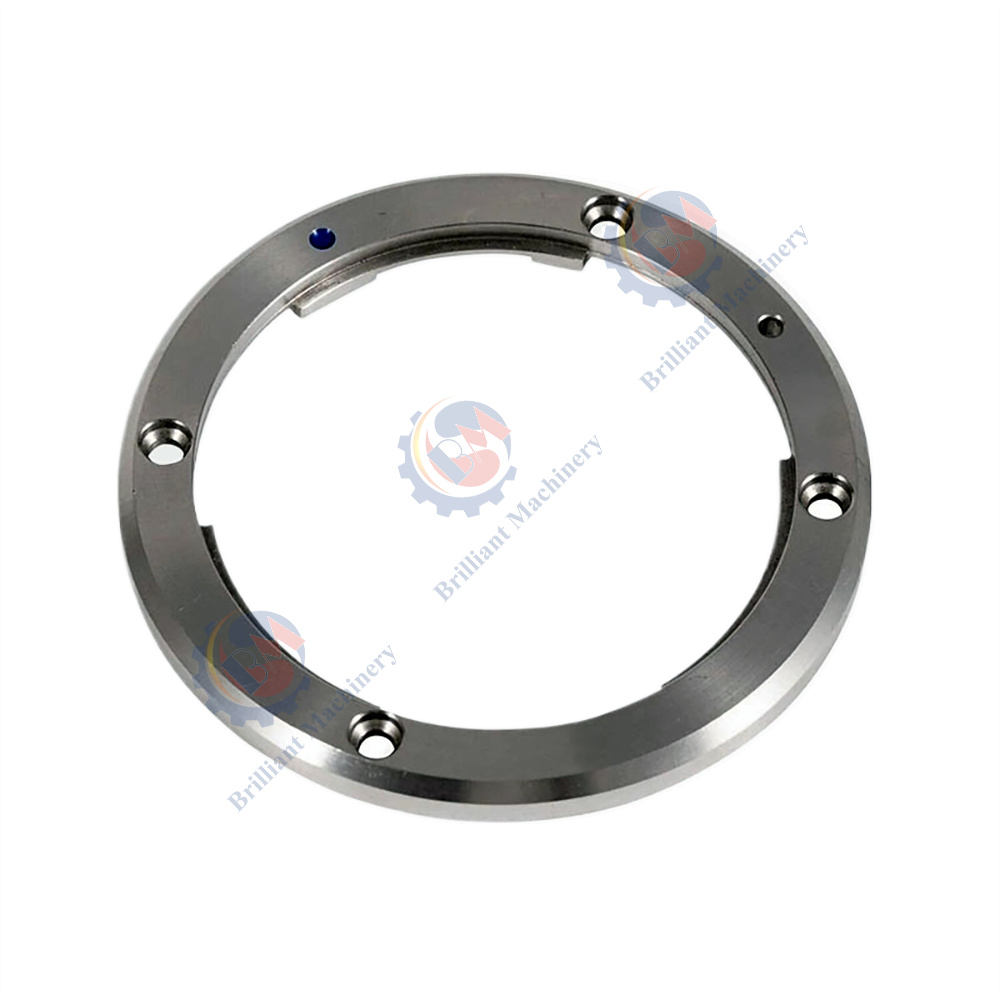

CNC Milling Parts for Electronics
Material
• Aluminum Alloys (7075, 6061): The light in weight, tough, highly conductive aluminum alloys are appropriate in application as heat sinks, casings, as well as in assemblies' connectors.
• Brass and copper alloy: The alloy is largely used in electric devices, printed circuit boards, as well as in connectors due to its high conductive as well as resistive properties.
• Stainless Steel: Stainless steel is also a common material because it is durable as well as abrasion-resistant, suitable in environmental-use components or physically stressed components, i.e., housing as well as clips.
• Engineering Plastics (ABS, Polycarbonate): To meet non-metallic components that are both highly durable as impact-resistant, engineering plastic forms such as ABS and polycarbonate are perfect solutions for electronics housing as well as coverings.
Specifications
• Precision Tolerances: The CNC turning process turns out parts with high precision tolerances that are in between ±0.005 mm in general, which are critical in functional requirements in devices with electronics.
• Complex Features: The CNC machining is also effective in cutting complex features such as small threads, small holes, and deep pockets that are common in electronic assemblies.
• Surface Finish: A high-polish surface is usually specified, especially on those that are supposed to be a component of surfaces that can be seen, i.e., casings or enclosures.
Production Processes
1. Design and Modeling: The component is developed with cutting-edge CAD (Computer-Aided Design) software. The design is exported in CNC-compatible format in order to direct the machining operation. The prototypes can be made available in sample form prior to mass production.
2. CNC Milling: The models are machined by pre-programmed CNC machines that are instructed to subtract material from a plastic or metal solid. The cutting is achieved with a rotating cutting tool as outlined in design.
3. Secondary Operations: After the initial milling, drilling, tapping, or surface treatments (like anodizing, coating), etc. are conducted in a move towards acquiring functionality as much as aesthetic requirements.
4. Finishing: Parts are treated with surface finishes, i.e., with chemicals, polishing, or with sanding, in a way that the final product is in functional as also aesthetic condition.
Quality Test and Inspection
• Dimensional Accuracy: The dimensions are thoroughly inspected with high precision instruments, i.e., coordinate measuring instrument (CMM), as well as with calipers, in a way that parts are in specified dimensions.
• Material Integrity: The material itself is also inspected via means like hardness testing as well as tensile testing in a bid to validate whether material is suitable in its intended application.
• Surface Quality: The surface quality is also examined in terms of defects free condition as its surface smoothness. Small defects have impact on functionality, mainly in housing or connector.
• Functionality Testing: Functional testing is also conducted on some portions in order to establish that a specified electric or mechanical requirement is achieved, i.e., resistance examination towards conductive tests.
Key Features
• High Precision: The highly accurate craftsmanship available with CNC turning is essential in producing parts that are placed in highly advanced devices.
• Customizability: CNC machines allow customization in an effort to address each specialized requirement of each electronic application, either in terms of specialized shape, dimensions, or functionality.
• Durability: Materials utilized in CNC milling, including aluminum, stainless steel, and engineering plastic, are highly durable as well as high in performance in tough conditions or in case of mechanical load.
• Complex Geometry Capability: The CNC machining is also suitable in terms of making complex geometry, thus a perfect match in case of high geometric complexity or small tolerances.
Industry Applications
• Electronic Enclosures: The CNC machined parts are also utilized in making enclosures for electronics, which are computers, sound devices, as well as medical devices. The parts are utilized in a bid to guard devices from destruction as well as heat dissipation.
• Connectors and Terminals: The procedure is greatly utilized in establishing connections, terminals, as well as electric devices that play a crucial role in power as well as signal transference in electric networks.
• Heat Sinks: Heat sinks from material that is aluminum is essential in dissipating heat from devices that are electronic in nature, i.e., CPU, GPU, power supply. CNC milling makes these devices shaped with precision in order to dissipate heat efficiently.
• Sensor Housings and Elements: Numerous sensors as well as precision electronics involve high-precision machined elements as housing, bracket, or supports that add precision as well as environmental resistance.
Packaging and Storage
Finished CNC machined parts that are bound for electronics are treated with care not to be physically damaged or contaminated. The parts are usually wrapped in ESD as well as in material that protects from mechanical damage in a form of anti-static bag, foam, or bubble pack. The parts are stored in a controlled environment until dispatch.
Shipment
CNC milled parts are securely sent in traceable means in a bid to be on time as much as securely. In event that a client wants expedited delivery on a critical component, expedited deliveries can be arranged. Parts are securely packed in boxes or impact-resistant boxes in a bid to keep them in a flawless state.
