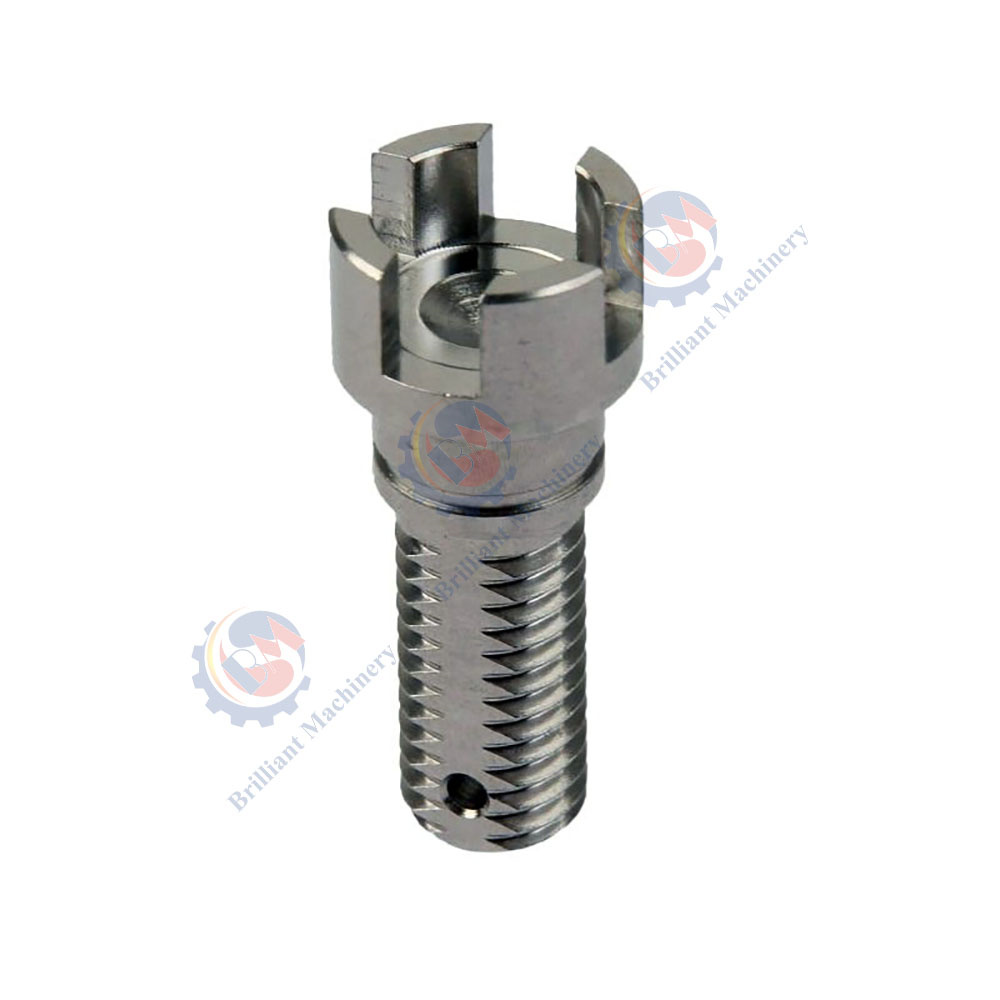

CNC Milling Parts for Aerospace
Material
• Aluminum Alloys: The high ratio with light weight makes aluminum alloy suitable in a variety of parts in aeronautical application, i.e., in housing, structural supports, in brackets.
• Titanium Alloys: The high resistance, high and low thermal resistance, as well as high strength, render it appropriate for use in critical parts as well as structural parts.
• Stainless Steel: Stainless steel is also in reliable and enduring aerospace application with high resistance towards corrosion, as in high-pressure parts as well as in fasteners.
• Inconel: Inconel is utilized as it can be worked at high heat as well as high pressure, which is extensively utilized in exhaust pipes, turbine blade, and other devices that are utilized in rigorous conditions.
Specifications
• Precision Tolerances: The precision achieved in CNC machining is with tolerancing as minimal as ±0.005 mm, making each component a perfect fit in the assembly with high demands in terms of high-end aerospace requirements.
• Complex Geometries: The flexibility in CNC machining allows complex as well as complicated geometries, which are required in the case of turbine blades, airframe structures, as well as casings.
• Surface Finishes: The finishes are from matte through polished, with some having additional treatments consisting of coating, passivation, or anodizing in a bid to enhance material properties.
Production Processes
1. CAD Modeling: All CNC machined parts in aerospace are initiated with a complete CAD (Computer-Aided Design) model. The design ensures that the component is dimensionally as well as functional requirement-compliant.
2. CNC Milling: A CNC is utilized once a full CAD design is achieved. The material is rotated with cutting tools stripping away material in a manner that will form the shape.
3. Secondary Operations: A second operation, perhaps drilling, tapping, or grinding, will sometimes be necessary in order to complete the part.
4. Finishing Processes: Depending on application as also material, heat treatment, coating, or surface polishing can be made as a means improving functionality as also aesthetic look of component.
Quality Test & Inspection
• Dimensional Verification: Every component is carefully measured with precision instruments like micrometers, calipers, and a CMM (Coordinate Measuring Machine) in a bid towards specified tolerances.
• Visual Inspection: Parts undergo visual checks to identify any surface defects or cosmetic flaws that could affect the part’s performance or appearance.
• Material Testing: In aerospace components, material quality is paramount. Materials are inspected in terms of requirements regarding strength, durability, as well as resistance to fatigue, which encompass tensile, hardness, as well as impact testing.
Key Features
• Precision and accuracy: The CNC milling is also implemented in manufacturing high-accurate parts in the manufacturing industry that fit into the final product with no gaps between.
• Complexity and Customisation: CNC machines have the ability to produce parts with complex details, making customization in the aerospace sector from customized engine parts to structures in airframes.
• Lightweight yet durable: Materials such as aluminum and titanium are practically perfect in terms of durability with lightness that is required in aeronautical industries.
• High Durability: Parts are designed to withstand harsh conditions, including extreme temperatures, high pressures, and exposure to corrosive elements.
Industry Applications
• Aircraft Manufacturing: CNC machined parts are also crucial in assembling structural components of airplanes, i.e., bodywork, wings, and landing gear.
• Spacecraft Design: Brackets, structural panels, and engines are fabricated in spacecraft with CNC milling with a perspective towards space mission functionality as well as space mission reliability.
• Engine and Propulsion Systems: Aircraft and space vehicle engines are constructed with CNC machined parts that play a critical role in operation, which are combustion chambers, nozzles, and turbine blades.
Packaging and Storage
Once manufactured as well as inspected, aviation-industry intended CNC machined parts are packed cautiously in shock-absorbing material in transit, either foam material or static-sensitive bag. The parts are also warehoused in climatic condition in order to preserve its shape, in case of sensitive material such as titanium as well as high-strength alloy that is susceptible to moisture as well as thermal shock.
Shipment
Parts are neatly packed into durable boxes or crates with each specifically marked for identification. The means of transportation can be plane, ship, or ground, according to destination. Due to space-age parts' critical character, expedient secure means are relied on in not wanting at the sacrifice of speed.
